Item No :
PowerOn D1Order(MOQ) :
100 pieces. Accept one piece at sample price.Payment :
Paypal / TT / Western UnionProduct Origin :
ChinaColor :
WhiteShipping Port :
Ningbo, Shanghai, ShenzhenLead Time :

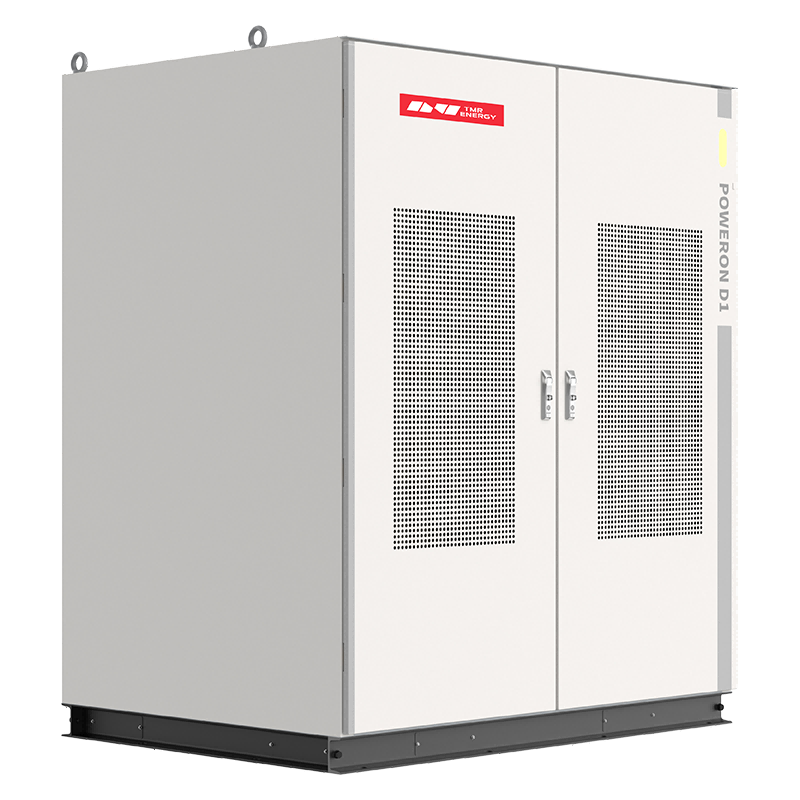

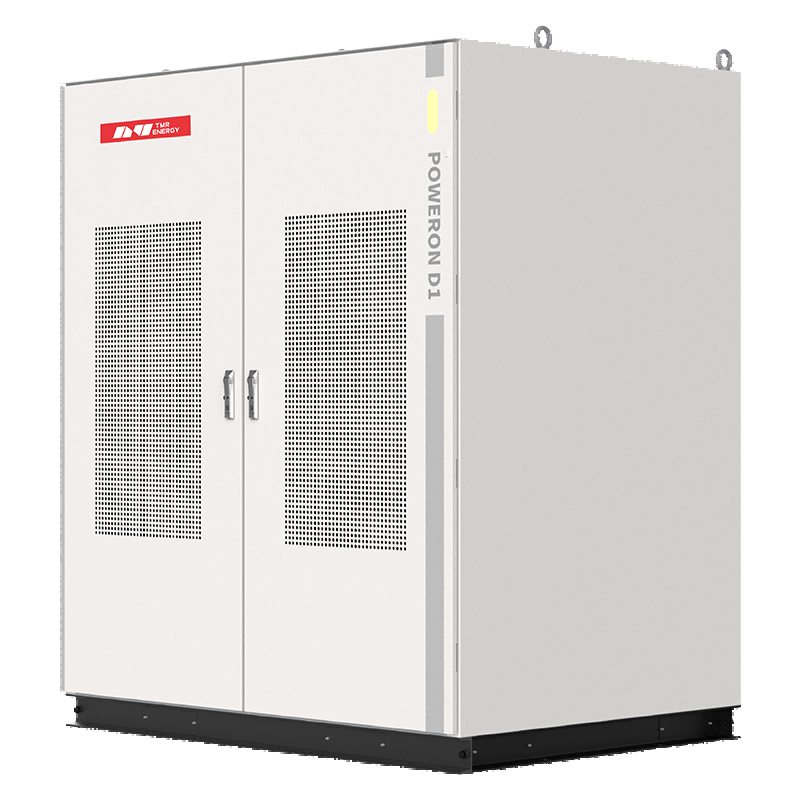

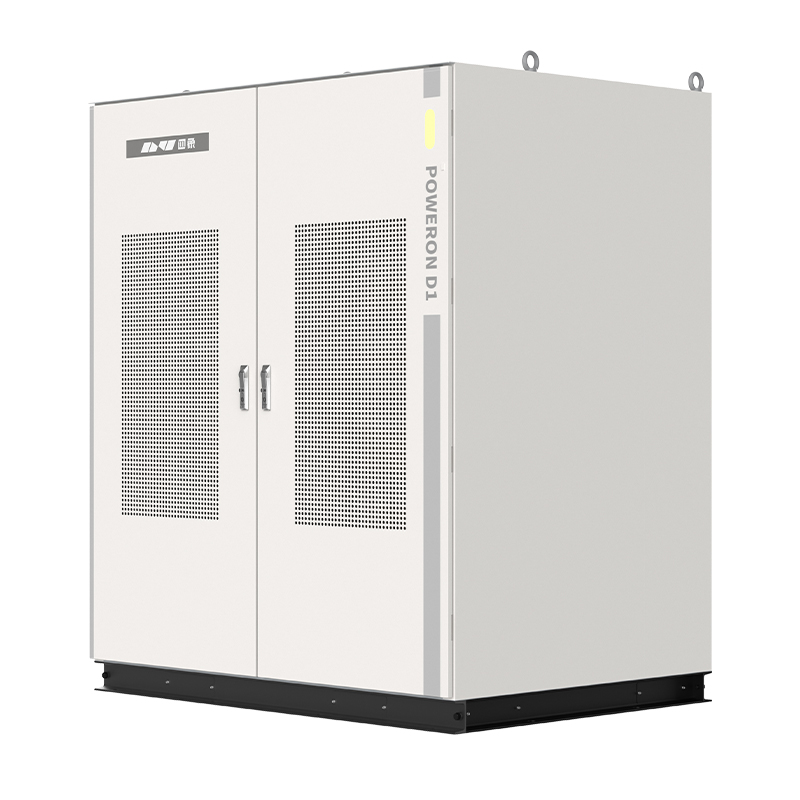

25 - 45 daysThe air-cooling container storage system is mainly used in large-scale renewable energy generation and consumption, power grid peak regulation and frequency modulation, emergency backup, delayed distribution network upgrade, distributed power generation and micro-grid systems. It always applied in commercial and industry scenarios. Modular structure design is adopted, the battery capacity is optional, and the scalability is strong, which can meet the power and energy requirements of different scenarios.
environmental adaptation:The whole machine has IP54 protection level, internal circulation forced air cooling design, and independent thermal management and temperature control system to meet the needs of most scene environments.
Safe and reliable:PACK + system + shell insulation triple fire protection design, independent relay protection, cell-level thermal monitoring, and single-point fault physical isolation significantly improve system security.
Multiple machines in parallel: By combining with the PowerNET outdoor control inverter cabinet, the modular expansion of the distributed energy storage system can be achieved to meet the deployment needs of large-scale application scenarios.
Highly integrated:A single cabinet integrates the battery PACK, battery management system, thermal management system, and fire protection system into one, making the system highly integrated.
Flexible deployment: It is pre-assembled in the factory and can be connected and used on-site. A single cabinet covers an area of less than 2 square meters and can be flexibly deployed in factories, parks, commercial buildings and other scenarios.
The battery pack uses LFP batteries and is paired with selfdeveloped BMS. One battery cabinet consisting of 10 packs with integrated air cooling and fire protection to ensure system safety, while the system can be freely expanded according to project requirements.
•
|
• Backup PowerPrime ESS provides emergency power in milliseconds during grid off |
![]() • Peak ShavingPrime ESS provides additional electricity if a peak load occurs |
![]() • Market ParticipationPrime ESS acts as virtual plant to participate in electricity market trades |
• Time of Use
Charge and discharge prime ESS at different electricity prices time
• Peak Shaving
Prime ESS provides additional electricity if a peak load occurs
• Backup Power
Prime ESS provides emergency power in milliseconds during grid off
• Market Participation
Prime ESS acts as virtual plant to participate in electricity market trades
Electronic Architecture
Prime ess is easy to connect and flexible to deploy. Each prime system is connected to a cluster control cabinet, which is then connected to a low voltage distribution cabinet under the transformer. The cluster control cabinet communicates in real time with the prime system and the smart meter on the transformer side to obtain their energy status. The system automatically discharges during peak hours or high loads, thereby reducing the use of the high-cost grid. Low voltage side access allows the saved power to reach the load without going through the transformer, avoiding the loss of transformer voltage conversion.
Control System
TMR Platform provides a rich visual interface that allows users to view equipment operating status, load power and revenue in real time.
The EMC system willdy namically allocate the output power of each Prime device to reasonably allocate Prime system working time.
Local EMU system integrates device control,system protection, battery management to ensure the perfect operation of the system.
Charging Station
By deploying prime in between of each charger could avoid expensive grid connection expansion, since prime regulates the load peaks to protests against overload while save electrical bills.
Commercial Building
Commercial buildings have high electricity needs with predictable time-based peaks, energy storage can significantly lower electricity costs. However, the space of commercial buildings is limited.
Airport
Prime replaces diesel generators as auxiliary power unit (APU) to provide power and air conditioning for the aircraft while parking at the airport.
Factory
Prime embedded multilayer artificial neural network is able to forecast in load changing in advance, adjust control algorithms instantaneous- ly to reduce electrical costs.
Specifications | |||||
Inverter cabinet | PowerNet 300 | PowerNet 300 | PowerNet 300 | PowerNet 500 | PowerNet 500 |
Number of battery cabinets | 1 | 2 | 3 | 4 | 5 |
Rated energy(kWh) | 215 | 430 | 645 | 860 | 1075 |
Rated power(kW) | 100 | 200 | 300 | 400 | 500 |
System efficiency | ≤90% | ≤90% | ≤90% | ≤90% | ≤90% |
Dimensions(W/D/H,mm) | 1700×1250×2000(single cabinet) | ||||
Weight(kg) | ≤2600(single cabinet) | ||||
Basic parameters | |||||
Cycle life(times) | 6000 | ||||
Protection level | IP54 | ||||
Installation | method Outdoor, floor installation | ||||
Cooling method | air conditioner | ||||
Noise(dB) | ≤80 | ||||
Anti-corrosion level | C3/C4 | ||||
Service life (years) | 10 | ||||
Certification | IEC62619,UN38.3,GB/36276 |
